PRESERVING LIFE,
A LITER AT TIME.
/// BRIEF

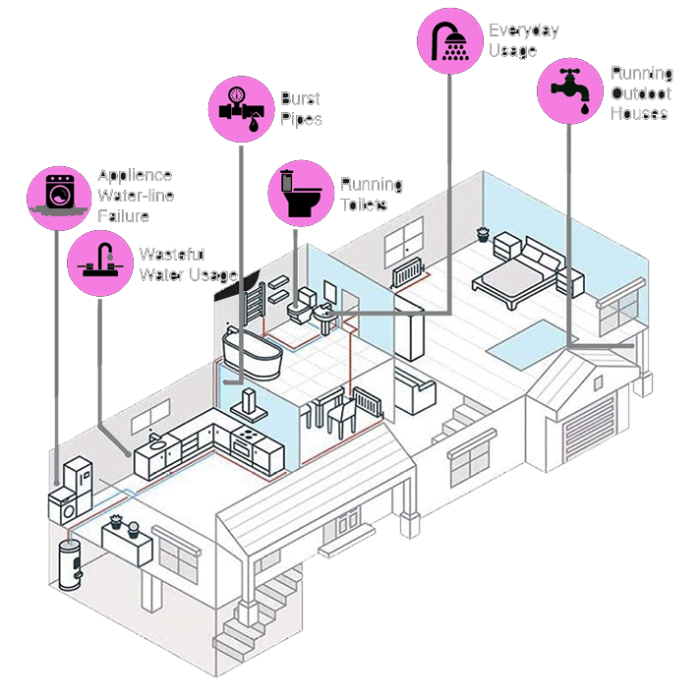

The Reason to Design: Water Stress
Water stress poses serious threats to human life, livelihoods and economic stability. Unless direct action, Zero Hour is imminent (so called when a location’s water reserves run out due to its misuse).
/// CONTENT
• 9 million Mexicans do not have access to drinking water.
• Agriculture and farming are the sectors that waste it the most
• Each year, more than 5 million cubic meters of water go to waste
• Despite this risk, the authorities fail to protect this resource
/// PEBBLE

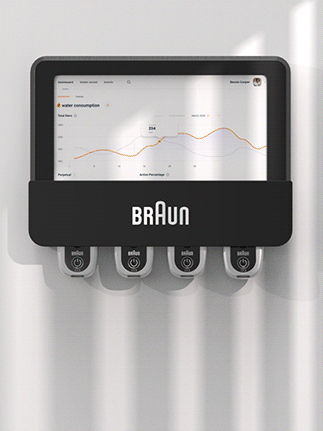

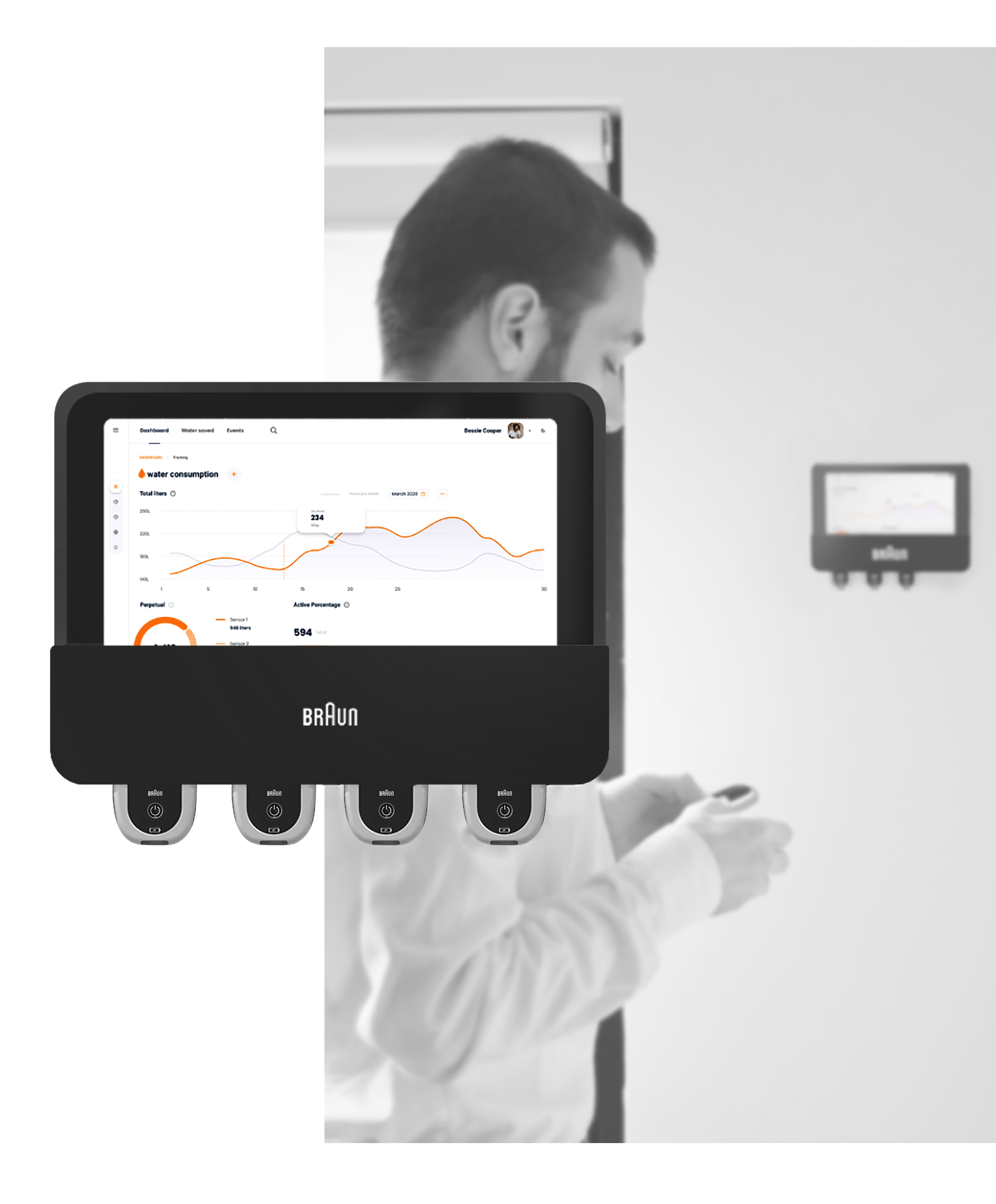

Intelligent system for water saving Pebble is a device designed to measure and regulate the use of water in the main intakes of a home,
focusing on efficiency and consumption, it has a limit mark of 60 liters of water per day.
Helping to create awareness and showing the immediate impact of water saving.
/// MONITORING

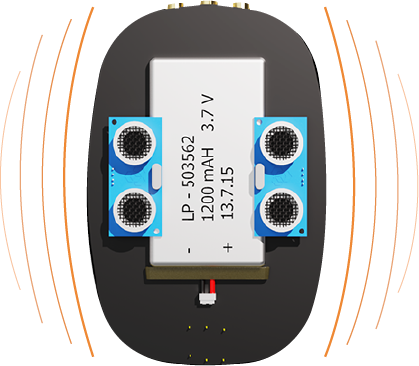

/// SONAR SESOR

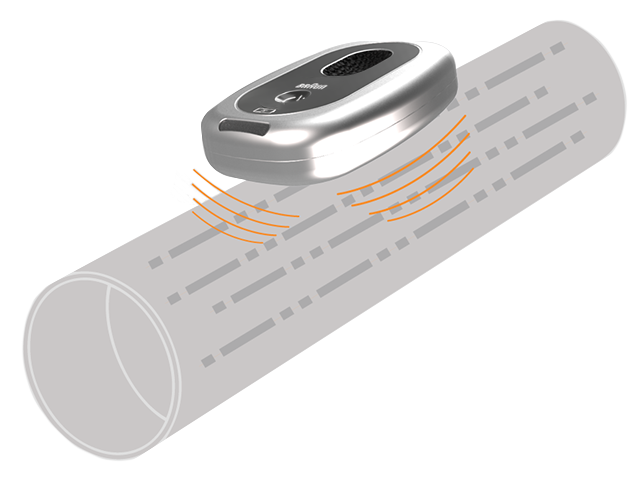

2 ultrasonic sensors at the back of the device detect water flow in a determined intake.
/// MEASURE
It learns the user’s consumption habits in order to provide alternatives about the 60 liters of water per day mark.
/// WARNING LIGHT
When unusual activity is detected, a light will turn on indicating that water is being wasted.
/// FUNCIONALITY
Pebble is designed to be a ready to use device, without the need of any extra installations it provides users with information at anytime, anywhere.
Preserving life, a liter at a time.

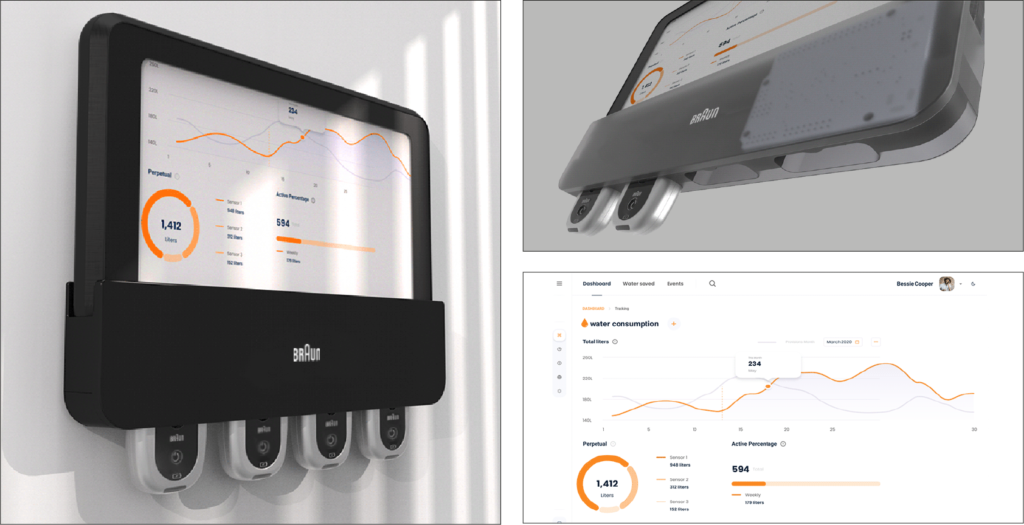

/// DATA INTERPRETATION

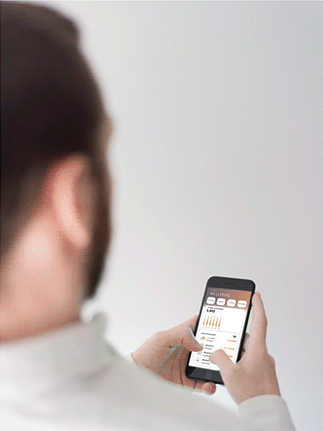

When the sensors are placed, the information will be transfer to the main station and the mobile app where the user can check:
∙ Number of sensors
∙ Sensor configuration
∙ Consumption record and alerts
Thanks to this data, users can start to plan their daily activities.
/// JOURNEY MAP

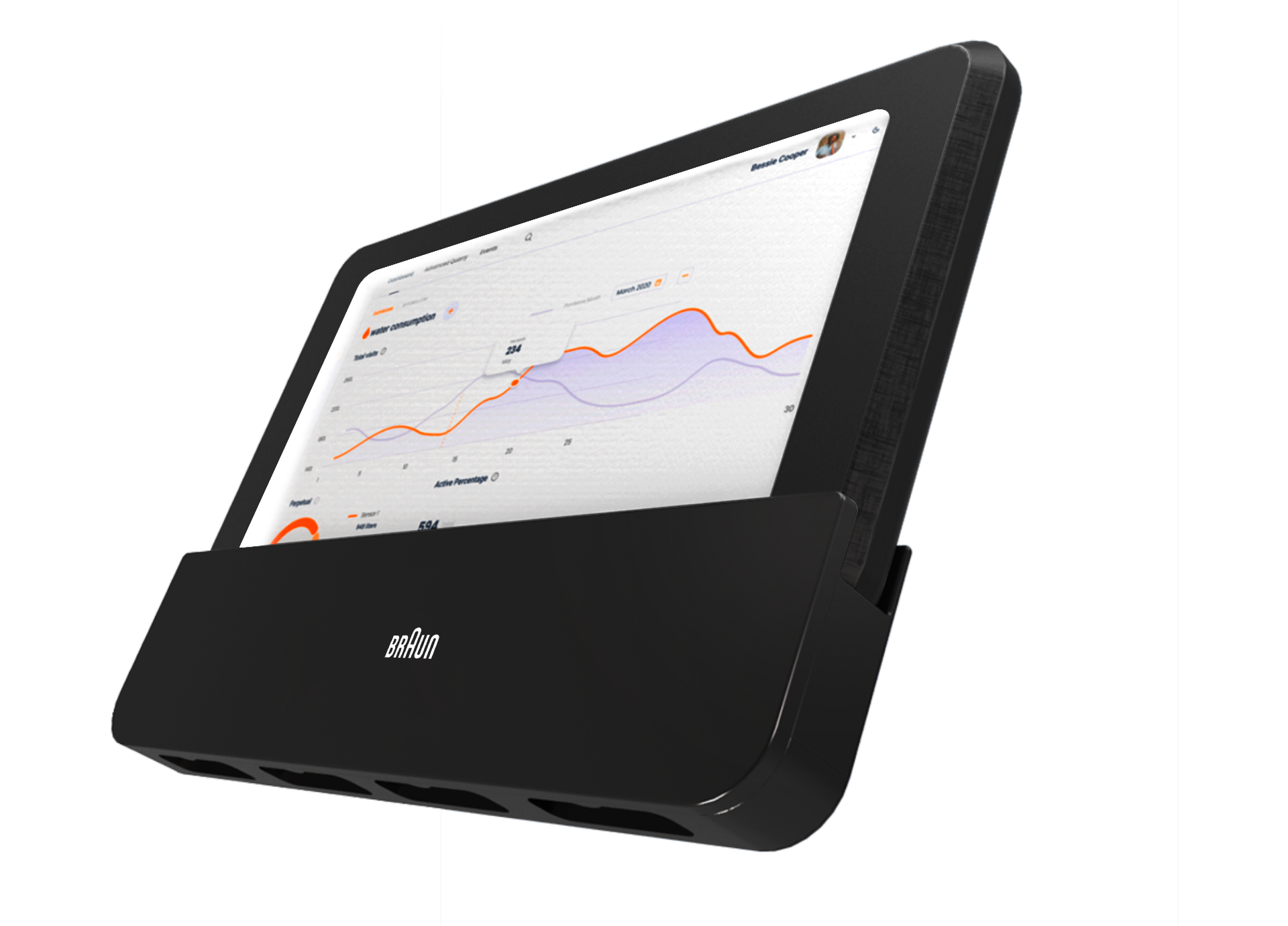

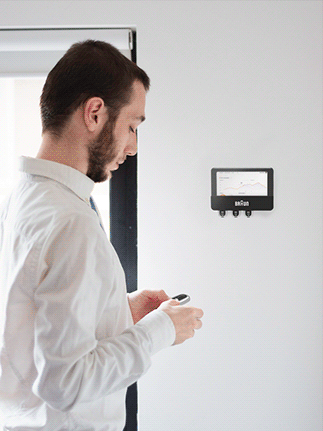

/// MAIN DEVICE
/// MAIN DEVICE
CONFIGURATION
/// PEBBLE CONFIGURATION
/// PLACEMENT
/// CONSUMPTION MONITORING INTAKE

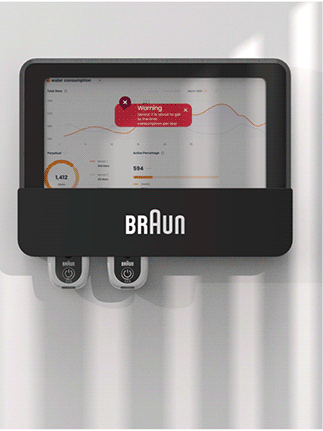

/// CONSUMPTION ALERT
/// REVIEW CONSUMTION DATA
